Freeze Free Vaccine Cooler Box with Coolant Packs
These vaccine carriers use technology to shield the vaccine compartment from the super-cold ice packs, ensuring user-independent freeze protection for heat-sensitive vaccines in challenging field conditions, making outreach programs more reliable. This CDC-approved vaccine transport cooler ensures vaccines remain at required temperatures during transit, safeguarding potency and effectiveness.
Key Features
- Product Name: Vaccine Cooler Box
- Model: FFVC-1.7L
- Shipping Weight: 6kg
- External Materials: Durable PE construction
- Insulation Materials: CFC FREE PU (Polyurethane)
- Insulation Thickness: ≥40mm for optimal temperature maintenance
- Includes 1 Set Coolant Pack for effective cooling
- CDC approved vaccine transport cooler
- Internal lining made from high-quality polypropylene (PP)
Technical Specifications
| Quality Standards |
CE, ISO9001, ISO14001, ISO45001, ISO13485 |
| External Materials |
PE |
| Internal Dimensions |
94x94x190 mm |
| External Dimensions |
308x308x300 mm |
| Shipping Volume |
0.04 m³ |
| Cold Life |
35 hours |
| Coolant Packs |
1 piece |
| Internal Lining Materials |
PP |
| Package Size |
33x33x37 cm |
Applications

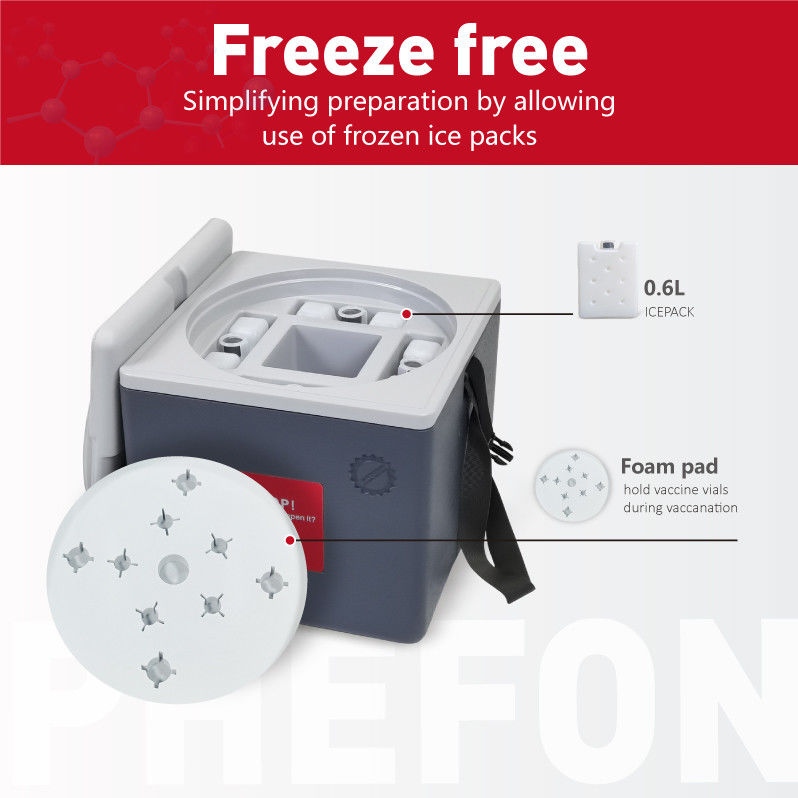

A freeze-preventive vaccine carrier is a vaccine carrier with a liner between the ice
packs and the vaccine compartment. It works like a regular vaccine carrier but has
the advantages of:
1.Preventing freezing.
2.Simplifying preparation by allowing use of frozen ice packs.
3.Reducing training burden (in the long term).
Ideal for healthcare settings including clinics, hospitals, mobile vaccination units, and remote medical camps. Suitable for routine immunization programs, emergency vaccination drives, and pharmaceutical sample distribution.
User Manual
1.Frozen the ice packs in the freezer at-25℃ for 24 hours;
2.Take out the ice packs from the freezer and place them directly in the ice pack
compartments WITHOUT CONDITIONING.
3.Load the vaccine compartment with vaccine,as needed;
4.Replace the foam pad, and put the lid back on the carrier (we advise to choose
foam pad on the top inside).Keep the lid on the carrier unless vaccines are being
placed in or removed from the carrier.
5.Transport vaccines to and from immunization sessions in the carrier.
6.At the end of the vaccination session and after all vaccines are back in the
refrigerator,takeout the ice packs from the carrier and place them in the freezer
Support & Services
Comprehensive technical support including installation guidance, maintenance tips, troubleshooting, and repair services. Detailed user manuals and replacement parts available.
Packing & Shipping
Securely packaged in protective foam and corrugated cardboard. Shipped with temperature-maintaining materials and clearly labeled with handling instructions.
Frequently Asked Questions
What is the brand and model number of the Vaccine Cooler Box?
Brand: PHEFON, Model: FS-1.7L
Where is the Vaccine Cooler Box manufactured?
Made in China
What certifications does the Vaccine Cooler Box have?
Certified with CE and ISO standards including ISO9001, ISO14001, ISO45001, and ISO13485.
What is the minimum order quantity and supply capacity?
Minimum order: 1 unit, Supply capacity: 30,000 units per month
What are the payment terms and delivery time?
Payment: T/T, Western Union, or L/C. Delivery: 5-7 working days
