Insulated Shipping Boxes Medical Vaccine Cooler VPU Box for Long Term Transportation
Product Description:
With an impressive cold time of 36-48 hours, depending on your requirements, you can choose from three temperature range options: -25~ -15°C, 2-8°C, or +15~+25°C. This flexibility allows you to customize the product based on your specific cooling or temperature maintenance needs, making it ideal for a wide range of applications.
our Vacuum Insulated Panel product guarantees prolonged temperature retention, keeping your goods or perishables fresh and chilled for an extended period. Whether you're transporting sensitive medical supplies, perishable food items, or beverages, you can rely on the exceptional insulation capabilities of this product to maintain the desired temperature consistently.

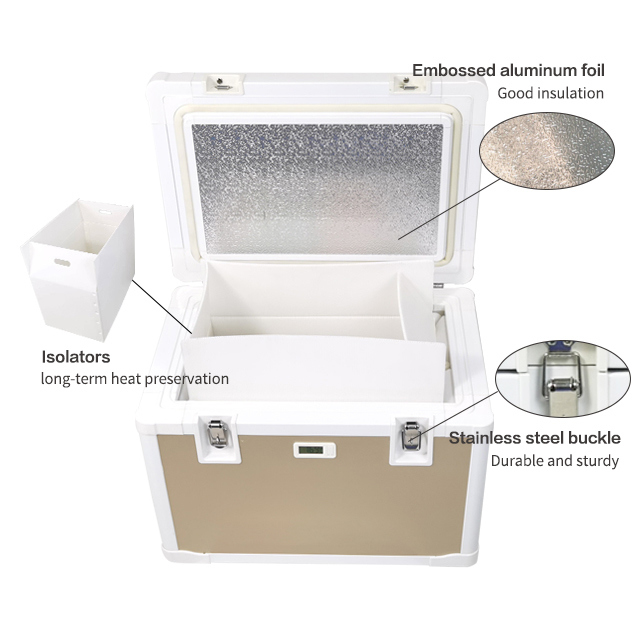

Features:
- Outer shell is made of metal material,more durable.Non-toxic harmless,anti UV,and not fade.
- Insulation layer can choose foam by CFC free Polyurethane (PU)only ,or PU+VIP Vacuum Insulation Panel to keep longer cold time
- The insulation material is without any chemical material, LONG COLD LIFE.
- Suitable for small orders.
- The size can be customized as requirement.
- Customer can optional select the GPS data logger or thermometer depend on need
- Packaging Details: The Cooler Box Is Packed In The Carton,then Stacked The Cartons In The Container. Or Put The Cartons On The Export Standard Pallet
- Temperature Range: -25~ -15C, 2-8C, +15~+25C For Choose
Technical Parameters:
| Ice pack supplied |
6pcs |
| Packaging Details |
The Cooler Box Is Packed In The Carton, then Stacked The Cartons In The Container. Or Put The Cartons On The Export Standard Pallet |
| Cold Time |
36-48hrs |

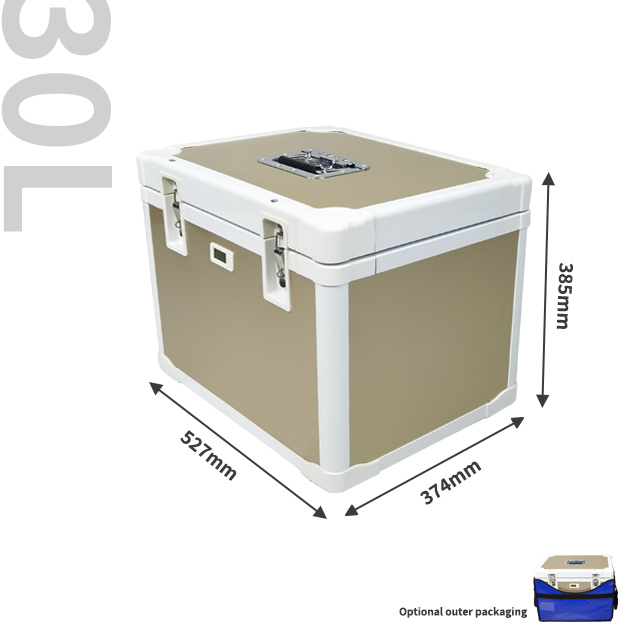

| External Dimension |
527*374*385 Mm |
| Color |
White |
| Internal Dimension |
427*274*285 Mm |
| Capacity |
30L |
| Tempeature Range |
-25~-15C, 2-8C, +15~+25C For Choose |
| Available dimension After Ice Pack |
380x235x230 Mm |
| Usage |

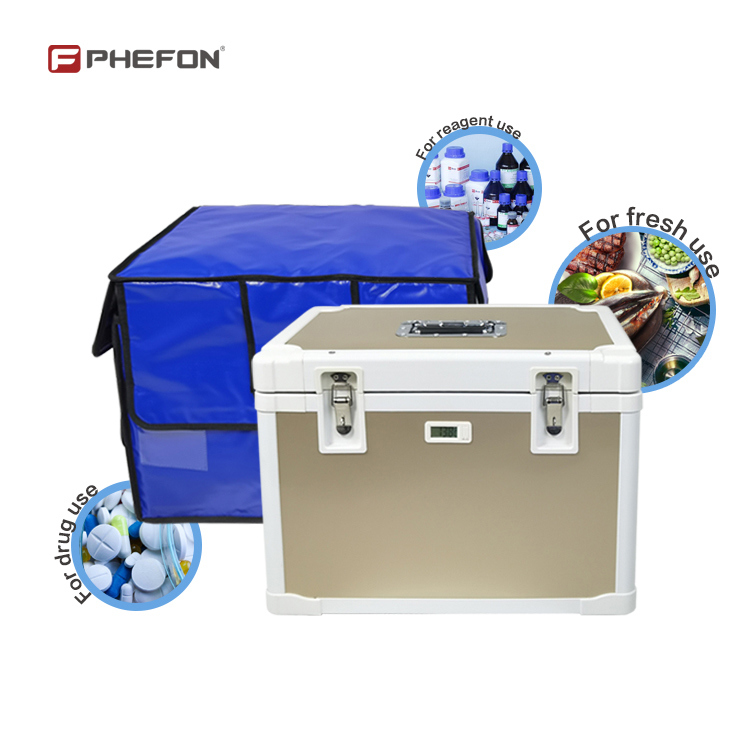

Vaccine/Medical /Specimen StorageCold Transportation |
How to Use The Cooler Box:
- * Before using, place the ice packs into the freezer until they are fully frozen (about 24 hours).
- * If the configurations you choose are empty Ice packs, fill clean water in the ice pack first,then well sealed, then follow No.1 step to frozen for using.
- * Place the frozen ice packs into the cooler box in the positions indicated.
- * When the temperature inside of the box reached the ideal temperature, open the lid and place the contents to be kept cold in the cold transport container.
- * Close the lid.
Notes:
When not using the cooler box, store the Ice Packs in the freezer please - then they will be ready for using just when you want them next time.
Pictures:
Reliablity:
The manufacturer has passed ISO13485, ISO9001,ISO14001,ISO45001 system certifications.
The vaccine cooler box have CE certification.
The coolant material have got MSDS.
The coolant material have got RoSH report by SGS,
The coolant material have certified by CNAS,DGM,suitable for any transportation way.
Packing and Shipping:
Product Packaging:
The Vacuum Insulated Panel will be carefully wrapped in protective packaging to prevent any damages during transit. It will be placed in a sturdy cardboard box with adequate cushioning material to ensure safe delivery.
Shipping Information:
Our Vacuum Insulated Panel will be shipped via a reliable courier service to ensure timely and secure delivery to your doorstep. You will receive a tracking number to monitor the status of your shipment once it is dispatched.
FAQ:
Q: What is the brand name of this Vacuum Insulated Panel product?
A: The brand name of this product is PHEFON.
Q: Is OEM service available.
A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.
Q: How long is the lead time:
A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days.
