Place of Origin:
China
Brand Name:
PHEFON
Certification:
CE, ISO9001, ISO14001, ISO45001, ISO13485
Model Number:
FS-10L
The Medical Cooler Box is a reliable solution for safely transporting temperature-sensitive medical supplies such as vaccines.
Designed to maintain cold temperatures for extended periods, this medical cool box with thermometer offers a cold time of 24 to 48 hours. This ensures that vaccines and other medical supplies remain within the required temperature range during transportation, safeguarding their efficacy.
The cooling method employed by this medical ice cold box is through a coolant ice pack. The ice pack helps regulate the internal temperature of the cooler box, keeping the contents consistently cold throughout the journey.
Constructed with high-quality materials, the outer shell and liner of the cooler box are made of PP (polypropylene), a durable and lightweight material known for its resistance to chemicals and impact. This ensures that the cooler box can withstand transportation challenges while protecting the delicate medical supplies inside.
Enhanced with high-density PU (Polyurethane) foam insulation, this portable vaccine transport cooler provides superior thermal insulation properties. The PU foam effectively traps and maintains the cold temperature within the cooler box, preventing heat transfer and external temperature fluctuations that could compromise the integrity of the medical supplies.
Whether you are a healthcare professional, medical courier, or humanitarian worker, the Medical Cooler Box is an essential tool for ensuring the safe and effective transport of temperature-sensitive medical supplies. Its reliable cooling performance, durable construction, and compact design make it an ideal choice for various medical transportation needs.

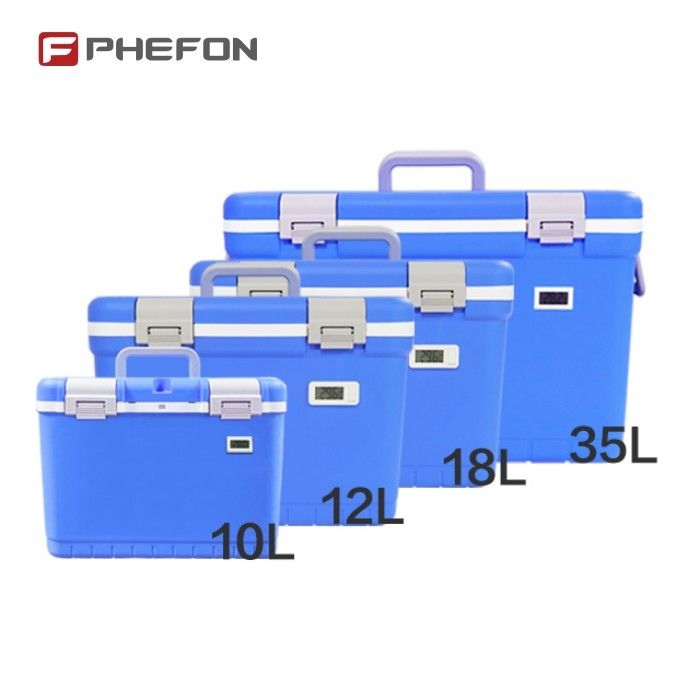

Items
|
FS-6L
|
FS-10L
|
FS-12L
|
FS-18L
|
FS-35L
|
Cold chain type
|
Standard Cooler box
|
Standard Cooler box
|
Standard Cooler box
|
Standard Cooler box
|
Standard Cooler box
|
Capacity
|
6L
|
10L
|
12L
|
18L
|
35L
|
Weight Empity
|
1.95kg ±10%
|
2.4kg ±10%
|
2.93kg ±10%
|
2.8kg ±10%
|
4.5kg ±10%
|
External Surface material
|
PP
|
||||
Internal lining
material
|
PP
|
||||
Insulation material
|
PU(Polyurethane) CFC FREE FOAM
|
||||
Insulation Thickness
|
≥40mm
|
≥45mm
|
≥40mm
|
≥25mm
|
≥25mm
|
External Diemnsion(mm)
|
325*235*250
|
370x280x298
|
425x262x305
|
425x262x305
|
570x305x365
|
Internal Dimension(mm)
|
240*140*165
|
270x173x203
|
325x170x225
|
363x203x244
|
475x245x270
|
Lid Type & Fixings
|
Unremovable
|
Unremovable
|
Unremovable
|
Unremovable
|
Unremovable
|
No.of Ice Packs Required
|
fixed ice packs / One set 0.4L ice packs
|
With certifications such as CE, ISO9001, ISO14001, ISO45001, and ISO13485, you can trust that the PHEFON FS-10L Medical Cooler Box meets the highest quality standards. Its high-density PU foam insulation ensures reliable temperature control, with temperature ranges of 2-8℃, 15~25℃, and -25~-15℃ to accommodate a variety of medical products.
► How to use the medical cooler box:
* Before using, place the ice packs into the freezer until they are fully frozen (about 24 hours).
* If the configuration you choose is empty Ice packs, fill clean water in the ice pack first,then well sealed, then follow No.1 step to frozen.
* Place the frozen ice packs into the cooler box in the positions indicated, and close the lid.
* When the temperature inside of the box reached the ideal temperature, open the lid and place the contents to be kept cold in the cold transport container.
* Close the lid.
Notes:
When not using the cooler box, store the Ice Packs in the freezer please - then they will be ready for using just when you want them next time.
