Phefon Good Performance PU Insulate cooling storage Medical Cooling Box For Cold Chain Transportation

Phefon Good Performance PU Insulate cooling storage Medical Cooling Box For Cold Chain Transportation

phefon cold chain transportation

phefon cold chain transport box

pp cold chain transportation

Place of Origin:

China

Brand Name:

Phefon

Certification:

CE, ISO9001, ISO14001, ISO45001, ISO13485

Model Number:

FS-10L

Contact Us
Request A Quote
Product Details
Features:
Portable,Insulation,Temperature Display
Product Name:
Ice Cooling Box
Color:
Blue / Customized
Capacity:
10L
External Dimensions:
370 X 280 X 290 Mm
Internal Dimensions:
270 X173x 203 Mm
Insulation Type:
PU(Polyurethane) Foam
Outer & Liner Material:
PP(Polypropylene)
Temperature Range:
2-8°C /15-25℃/ -10- -22℃
Usage:
Cold Chain Storage And Tranpotation
OEM / ODM:
Support
Ice Packs:
Supply One Set
Temperature Display:
Optional Select
Cooling Method:
Passive,use Ice Pack Supply Cold Energy
Highlight:

phefon cold chain transportation

,

phefon cold chain transport box

,

pp cold chain transportation

Payment & Shipping Terms
Minimum Order Quantity
10 Units
Price
Negotiable
Packaging Details
Carton/pallet meet with all ways to export.
Delivery Time
5-7 Working Days
Payment Terms
T/T, Western Union, L/C
Supply Ability
30000 Units Per Month
Product Description

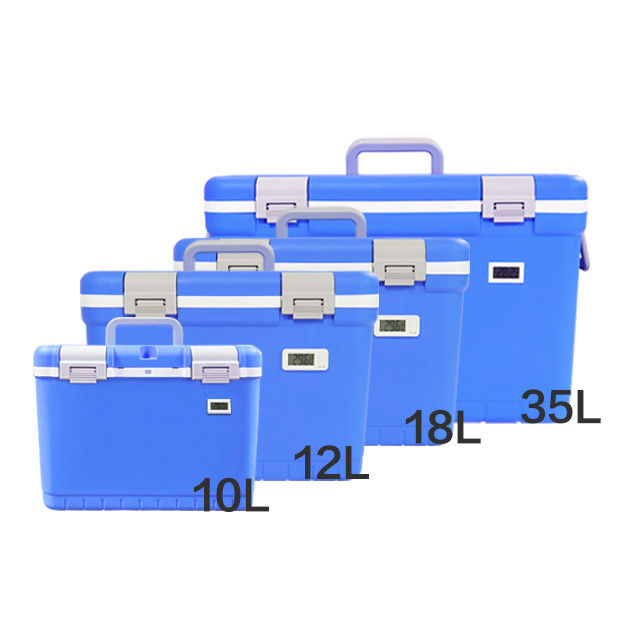

 Insulate Portable Ice Chest Veterinary Laboratory Medical Transport Cold Packaging Boxes

(Model:FS-6L/10L/12L/18L/35L)



Phefon Good Performance PU Insulate cooling storage Medical Cooling Box For Cold Chain Transportation 0

 ► Cold Packaging Box Application:

Portable cold packaging boxes, are used to transport blood products, organs and pharmaceuticals that require stable temperatures to maintain their life saving and life giving properties.

Ideal For Transporting Medicines such as :

--Vaccines

--Insulin

--Breeding Programs

--Biopharmaceutical, Life Science and other Medical Products

--IVD products and biological specimens

--Selected fresh food, drink and dairy products



► Specifications:

Items

FS-6L

FS-10L

FS-12L

FS-18L

FS-35L

Cold chain type

Standard Cold box

Standard Cold box

Standard Cold box

Standard Cold box

Standard Cold box

Capacity

6L

10L

12L

18L

35L

Weight Empity

1.95kg ±10%

2.4kg ±10%

2.93kg ±10%

2.8kg ±10%

4.5kg ±10%

External Surface material

PP

Internal lining

material

PP

Insulation material

PU(Polyurethane) CFC FREE FOAM

Insulation Thickness

≥40mm

≥45mm

≥40mm

≥25mm

≥25mm

External Diemnsion(mm)

325*235*250

370x280x298

425x262x305

425x262x305

570x305x365

Internal Dimension(mm)

240*140*165

270x173x203

325x170x225

363x203x244

475x245x270

Lid Type & Fixings

Unremovable

Unremovable

Unremovable

Unremovable

Unremovable

No.of Ice Packs Required

fixed ice packs / One set 0.4L ice packs

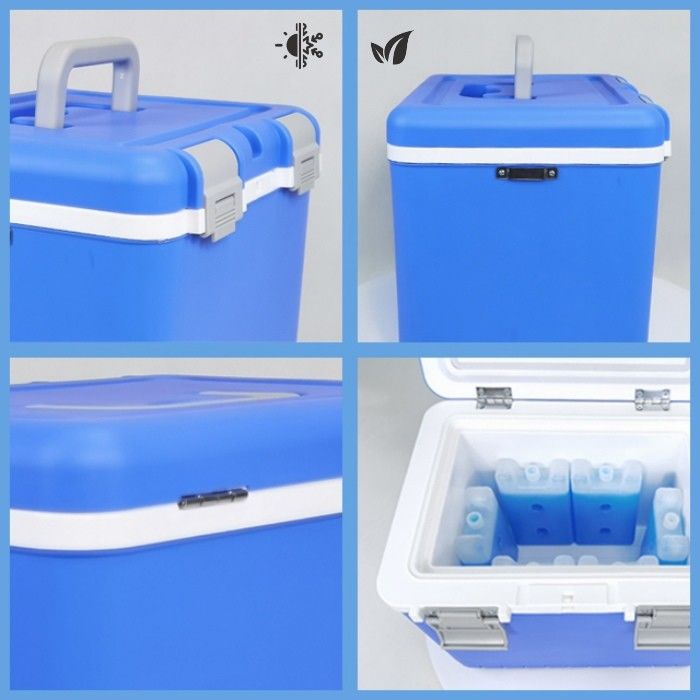

► Detailed Pictures:

Phefon Good Performance PU Insulate cooling storage Medical Cooling Box For Cold Chain Transportation 1





Phefon Good Performance PU Insulate cooling storage Medical Cooling Box For Cold Chain Transportation 2

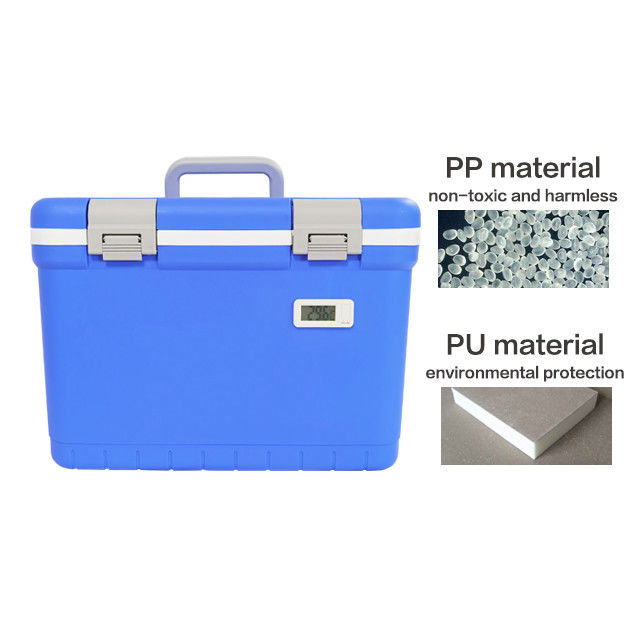

Features of the Cold Box:

Multifunctional keep cold or warm cooler box

Humanized portable handle

Fixed ice bricks design

High density PU foam

Good sealing performance

Color/logo can be customized



How to use the medication cold storage box:
* Before using, place the ice packs into the freezer until they are fully frozen (about 24 hours).

* If the configuration you choose is empty Ice packs, fill clean water in the ice pack first,then well sealed, then follow No.1 step to frozen.

* Place the frozen ice packs into the cold box in the positions indicated, and close the lid.
* When the temperature inside of the box reached the ideal temperature, open the lid and place the contents to be kept cold in the cold transport container.

* Close the lid.
Notes:
When not using the cold box, store the Ice Packs in the freezer please - then they will be ready for using just when you want them next time.



Reliability:

The manufacturer has passed ISO13485, ISO9001,ISO14001,ISO45001 system certifications.

The vaccine cooler box have CE certification.

The coolant material have got MSDS.

The coolant material have got RoSH report by SGS,

The coolant material have certified by CNAS,DGM,suitable for any transportation way.

  • Phefon Good Performance PU Insulate cooling storage Medical Cooling Box For Cold Chain Transportation 3



Why Choose Us?
1) All MODELS ARE CUSTOMIZABLE.
2) FREE DRAWINGS AND SAMPLES
3) FACTORY DIRECT PRICE.
4) SMALL ORDER WELCOME
5) 12 MONTH WARRANTY
6) NICE QUALITY.



FAQs:

1. Q: How long can medical vaccine cooler boxes maintain the desired temperature?

    A:The duration of temperature maintenance depends on factors such as the quality of insulation, cooling mechanism, and ambient conditions. Cooler boxes with ice packs or gel packs can typically maintain temperatures for several hours, while refrigeration-based models can sustain the desired temperature for longer durations, often up to several days.



2.Q: How is ice box/ice pack made?

A: Mould design, mould making, blow molding processing, SAP or CMC injection, ice box/ice pack finished.



3.Q:HOW CAN I GET THE COOLER BOX?
A:For those free samples, the freight are bill to the buyer, FEDEX,UPS,TNT or DHL are for your option. Let us have your corrispondent ID, we can launch the pick up for you. For bulk order or FCL order, we have experienced agency to support the complicated problem during the delivery, you just need to wait for the arrival of the goods at ease.
