► Portable Cooler Box Cold Storage Box For Medicine Cold Chain Transport

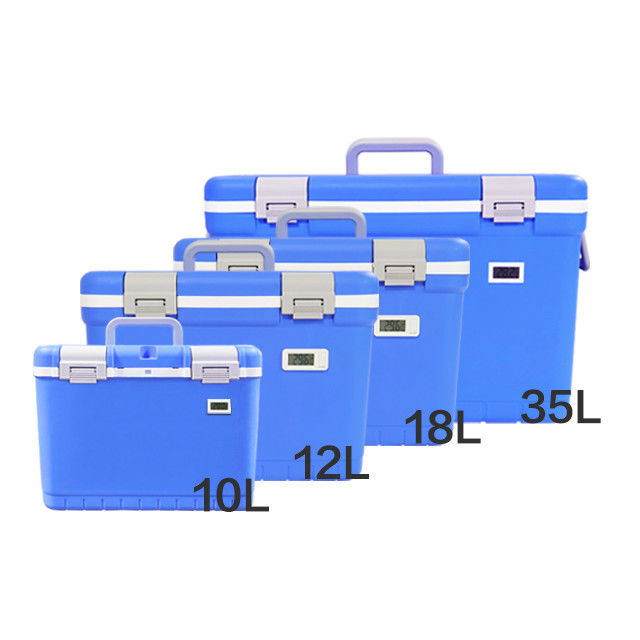

(Model:FS-6L/10L/12L/18L/35L)
► Portable Cooler Box Application:
Portable ice cooler boxes, are used to transport blood products, organs and pharmaceuticals that require stable temperatures to maintain their life saving and life giving properties.
Ideal For Transporting Medicines such as :
--Vaccines
--Insulin
--Breeding Programs
--Biopharmaceutical, Life Science and other Medical Products
--IVD products and biological specimens
--Selected fresh food, drink and dairy products
► Specifications:
Items
|
FS-6L
|
FS-10L
|
FS-12L
|
FS-18L
|
FS-35L
|
Cold chain type
|
Standard Cooler box
|
Standard Cooler box
|
Standard Cooler box
|
Standard Cooler box
|
Standard Cooler box
|
Capacity
|
6L
|
10L
|
12L
|
18L
|
35L
|
Weight Empity
|
1.95kg ±10%
|
2.4kg ±10%
|
2.93kg ±10%
|
2.8kg ±10%
|
4.5kg ±10%
|
External Surface material
|
PP
|
Internal lining
material
|
PP
|
Insulation material
|
PU(Polyurethane) CFC FREE FOAM
|
Insulation Thickness
|
≥40mm
|
≥40mm
|
≥40mm
|
≥25mm
|
≥25mm
|
External Diemnsion(mm)
|
325*235*250
|
370x280x298
|
425x262x305
|
425x262x305
|
570x305x365
|
Internal Dimension(mm)
|
240*140*165
|
270x173x203
|
325x170x225
|
363x203x244
|
475x245x270
|
Lid Type & Fixings
|
Unremovable
|
Unremovable
|
Unremovable
|
Unremovable
|
Unremovable
|
No.of Ice Packs Required
|
fixed ice packs / One set 0.4L ice packs
|

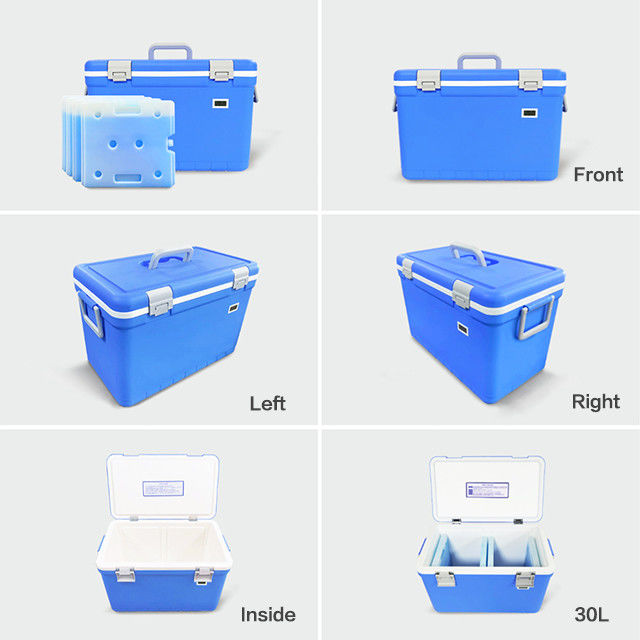

► Detailed Pictures:

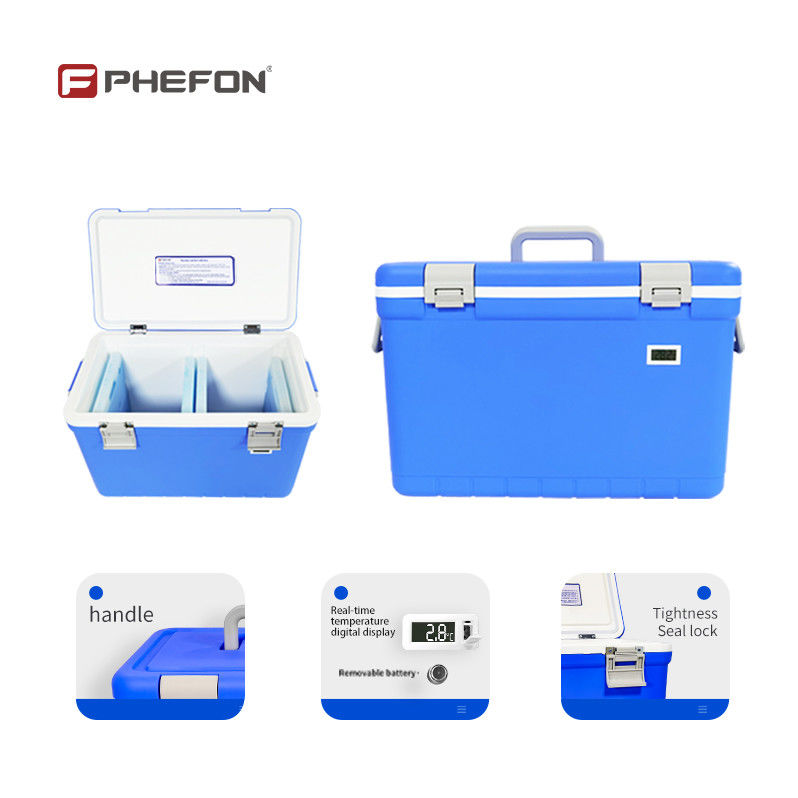

► Features of the Portable Cooler Box:
Multifunctional keep cold or warm
Humanized portable handle
Fixed ice bricks design

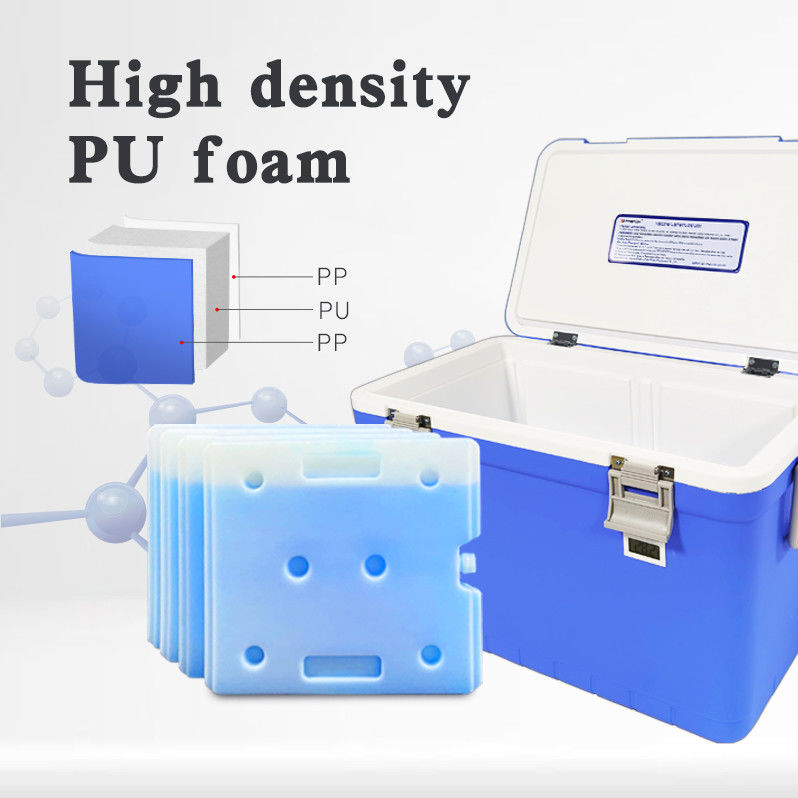

High density PU foam
Good sealing performance
Color/logo can be customized
► How to use the portable cooler box:
* Before using, place the ice packs into the freezer until they are fully frozen (about 24 hours).
* If the configuration you choose is empty Ice packs, fill clean water in the ice pack first,then well sealed, then follow No.1 step to frozen.
* Place the frozen ice packs into the portable cooler box in the positions indicated, and close the lid.
* When the temperature inside of the box reached the ideal temperature, open the lid and place the contents to be kept cold in the cold transport container.
* Close the lid.
Notes:
When not using the portable cooler box, store the Ice Packs in the freezer please - then they will be ready for using just when you want them next time.
► Reliability:
The manufacturer has passed ISO13485, ISO9001,ISO14001,ISO45001 system certifications.
The vaccine cooler box have CE certification.
The coolant material have got MSDS.
The coolant material have got RoSH report by SGS,
The coolant material have certified by CNAS,DGM,suitable for any transportation way.
► Why Choose Phefon Portable Cooler Box?
1) Support color/ logo customize.
2) Support samples
3) Factory direct price
4) Good quality
5) Short delivery time
FAQs:
1. Q: Can I buy 1 piece/pieces to our house or showroom?
A: Yes, we welcome you order with small quantity. But if you buy 1 piece, we have to ship them by DHL, Fedex or UPS.
2.Q: Can you add our logo on the products? Can you design specially for us?
A: Yes, we provide complete OEM and ODM service, adding customers’ LOGO on the product. Normally we suggest you to choose our already molded box for small QNTY order.
Of course we can build new mold for you if you have your own special design request , the cost will depends on the size and quantity.
3.Q:Are you a factory or trading company?
A:We are a factory in Xinxiang, China.
We are professional manufacturer with years experiences for cold chain packaging and solution for medical and food
temperature sensitive products. Welcome to visit to our factory.
