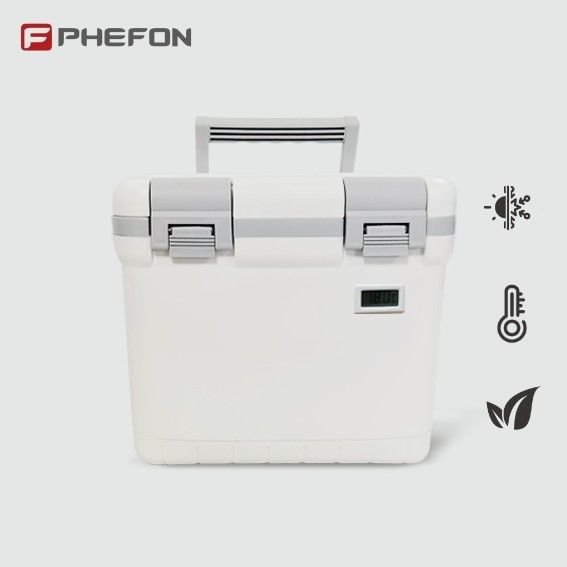

Phefon 6L White Long Lasting Freezer Medical Ice Box With Temperature Display

Phefon 6L White Long Lasting Freezer Medical Ice Box With Temperature Display

phefon ice cooler box

phefon medical cooler box

6l ice cooler box

Place of Origin:

China

Brand Name:

Phefon

Certification:

CE, ISO9001, ISO14001, ISO45001, ISO13485

Model Number:

FS-6L

Contact Us
Request A Quote
Product Details
Features:
Portable,Insulation,Temperature Display
Product Name:
Medical Ice Box
Color:
White
Cooling Method:
Passive,use Ice Pack Supply Cold Energy
External Dimensions:
340x 234x275 Mm
Internal Dimensions:
235x145x170 Mm
Insulation Type:
PU(Polyurethane) Foam
Outer & Liner Material:
PP(Polypropylene)
Temperature Range:
2-8°C /15-25℃/ -18 - -22℃
Usage:
Cold Chain Storage And Tranpotation
OEM / ODM:
Support
Ice Packs:
Supply One Set
Temperature Display:
Optional Select
Mechanical Lock:
Optional Select
Highlight:

phefon ice cooler box

,

phefon medical cooler box

,

6l ice cooler box

Payment & Shipping Terms
Minimum Order Quantity
10 Units
Price
Negotiable
Packaging Details
Carton/pallet meet with all ways to export.
Delivery Time
5-7 Working Days
Payment Terms
T/T, Western Union, L/C
Supply Ability
30000 Units Per Month
Product Description

► Phefon 6L White Long Lasting Freezer Medical Ice Box With Temperature Display

(Model:FS-6L/10L/12L/18L/35L)



Phefon Medical Ice Box, with good insulation material,specially designed to keep cold chain temperature with ice packs during transportation.

Used for: Vaccines,Insulin,Bio-pharmaceutical, Life Science and other Medical Products,IVD products and biological specimens,Selected fresh dairy products cold chain transportation.





► Features of the Medical Ice Box:

1. Temperature Control: Medical ice cooler boxes are equipped with temperature control systems to maintain a specific temperature range, typically between +2°C to +8°C for vaccines and +15°C to +25°C,-10℃ to -25℃ for certain medications

2. Insulation: Cooler boxes are designed with high-quality insulation materials polyurethane foam to minimize heat exchange with the external environment. This insulation helps maintain a stable internal temperature and prevents sudden temperature fluctuations.

3.Cooling Mechanism: Medical cooler boxes utilize various cooling mechanisms, including ice packs, gel packs, or advanced refrigeration systems, to keep the internal temperature within the desired range.

Phefon 6L White Long Lasting Freezer Medical Ice Box With Temperature Display 0



► Specifications:

Items

FS-6L

FS-10L

FS-12L

FS-18L

FS-35L

Cold chain type

Standard Cooler box

Standard Cooler box

Standard Cooler box

Standard Cooler box

Standard Cooler box

Capacity

6L

10L

12L

18L

35L

Weight Empity

1.95kg ±10%

2.4kg ±10%

2.93kg ±10%

2.8kg ±10%

4.5kg ±10%

External Surface material

PP

Internal lining

material

PP

Insulation material

PU(Polyurethane) CFC FREE FOAM

Insulation Thickness

≥40mm

≥45mm

≥40mm

≥25mm

≥25mm

External Diemnsion(mm)

325*235*250

370x280x298

425x262x305

425x262x305

570x305x365

Internal Dimension(mm)

240*140*165

270x173x203

325x170x225

363x203x244

475x245x270

Lid Type & Fixings

Unremovable

Unremovable

Unremovable

Unremovable

Unremovable

No.of Ice Packs Required

fixed ice packs / One set 0.4L ice packs

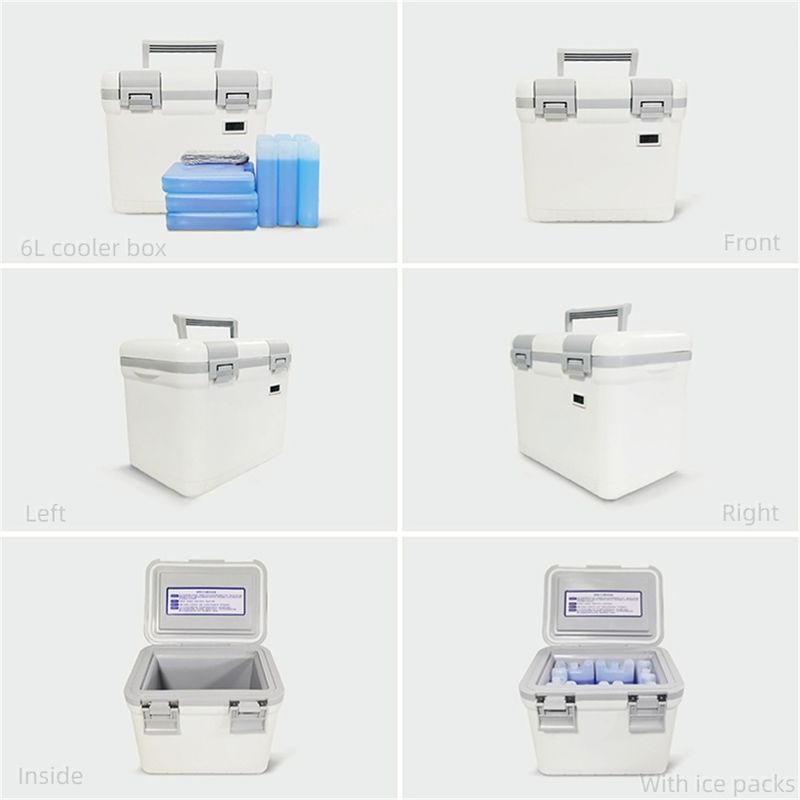

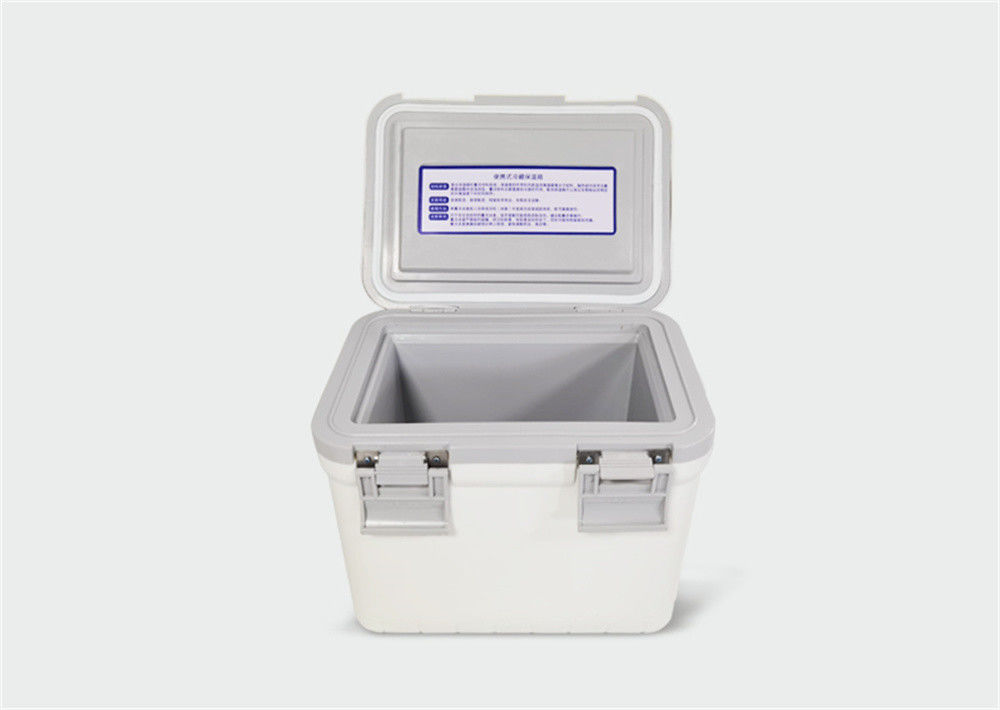

► Detailed Pictures:

Phefon 6L White Long Lasting Freezer Medical Ice Box With Temperature Display 1Phefon 6L White Long Lasting Freezer Medical Ice Box With Temperature Display 2



How to use the medical ice box:
* Before using, place the ice packs into the freezer until they are fully frozen (about 24 hours).

* If the configuration you choose is empty Ice packs, fill clean water in the ice pack first,then well sealed, then follow No.1 step to frozen.

* Place the frozen ice packs into the ice cooler box in the positions indicated, and close the lid.
* When the temperature inside of the box reached the ideal temperature, open the lid and place the contents to be kept cold in the cold transport container.

* Close the lid.
Notes:
When not using the ice cooler box, store the Ice Packs in the freezer please - then they will be ready for using just when you want them next time.



FAQs:

1. Q:Are you a factory or trading company?
A:We are a factory in Xinxiang, China.
We are professional manufacturer with years experiences for cold chain packaging and solution for medical and food
temperature sensitive products. Welcome to visit to our factory.

2.Q: What’s your advantage?
1)Direct manufacture with our own high quality patent products with competitive price.
2)We have professional R&D team, launch new designs each year and offer cold life performance validation for our clients.
3)Our company is qualified by ISO9001, ISO13485,ISO45001,ISO 14001 and many of our products passed CE mark, SGS qualification.
